Understanding JavaScript's Prototype Pattern

JavaScript's prototype-based inheritance is a fundamental concept that sets it apart from classical object-oriented languages. The Prototype Pattern is a key mechanism in JavaScript that allows for efficient object creation and method sharing. This article will explore the Prototype Pattern in depth, using both code examples and a visual representation to clarify the relationships between constructors, prototypes, and instances.

The Prototype Pattern Explained

In JavaScript, each function is created with a prototype property. This property is an object that contains properties and methods that should be available to instances of a particular reference type. The prototype serves as a blueprint for objects created using the constructor function.

Let's examine a basic implementation of the Prototype Pattern:

function Person() {}
Person.prototype.name = "Alice";
Person.prototype.age = 29;
Person.prototype.job = "Software Engineer";
Person.prototype.sayName = function() {
 console.log(this.name);
};

let person1 = new Person();
person1.sayName(); // "Alice"

let person2 = new Person();
person2.sayName(); // "Alice"

console.log(person1.sayName == person2.sayName); // true

In this example:

1. We define an empty Person constructor function.
2. We add properties (name, age, job) and a method (sayName) to Person.prototype.
3. We create two instances of Person: person1 and person2.
4. Both instances can access the sayName method, which outputs the name property.
5. We confirm that both instances are using the same sayName method.

Visual Representation

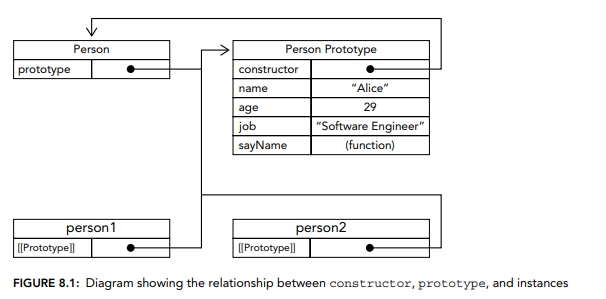

To better understand the relationships between the constructor, prototype, and instances, let's examine the following diagram:

This diagram illustrates several key concepts:

1. Constructor Function: The Person function serves as the constructor. It's an empty function in this case but could contain initialization logic if needed.

2. Prototype Object: Person.prototype contains shared properties and methods. In our example, it includes name, age, job, and the sayName method.

3. Instances: person1 and person2 are instances created using the new Person() syntax.

4. Prototype Chain:

   • The prototype arrow shows that the Person function has a prototype property pointing to Person.prototype.
   • The [[Prototype]] arrows (also known as __proto__ in some browsers) show that both person1 and person2 have an internal link to Person.prototype.
   • The constructor arrow at the top demonstrates that Person.prototype has a constructor property pointing back to the Person function.

5. Method Sharing: The diagram shows that both instances share the same sayName method, which is defined on Person.prototype.

How Prototypes Work

When you access a property or method on an object in JavaScript, the engine first looks for it on the object itself. If it's not found, it looks up the prototype chain:

1. It checks the object's immediate prototype (its [[Prototype]] or __proto__).
2. If not found, it continues up the chain to the prototype's prototype.
3. This process continues until the property is found or until it reaches the end of the chain (typically Object.prototype).

This mechanism allows for efficient memory usage, as methods are shared among all instances rather than being duplicated for each object.

Benefits of the Prototype Pattern

1. Memory Efficiency: Methods are defined once on the prototype rather than on every instance.
2. Dynamic Updates: Adding a method to the prototype makes it immediately available to all instances.
3. Flexibility: You can override prototype properties and methods on individual instances if needed.

Conclusion

The Prototype Pattern is a powerful feature of JavaScript that enables efficient object creation and method sharing. By understanding how constructors, prototypes, and instances are related, you can write more efficient and flexible code. The visual representation provided in this article helps to clarify these relationships and the underlying mechanics of JavaScript's prototype-based inheritance system.

As you continue to work with JavaScript, keep in mind the Prototype Pattern and how it can be leveraged to create more efficient and maintainable code structures.
